Pillared Full Quartz Infrared Heating Element (PFQE)

Overview

The Pillared Full Quartz Infrared Heating Element (PFQE) is a stainless steel medium-wave infrared heater designed for industrial heating and thermal processing applications. This pillared full quartz infrared heating element delivers uniform infrared heat across the entire emitter surface for consistent and repeatable process performance.

Rated at 1000W and 480V, this PFQE heater supports applications such as thermoforming, shrink packaging, adhesive activation, laminating, plastics processing, coating drying, and industrial material heating. In addition, the medium-wave infrared output provides efficient heat transfer across plastics, coatings, textiles, paper, rubber, and composite materials.

The pillared quartz design supports fast thermal response and reliable structural stability during continuous industrial operation. Because of this, manufacturers can maintain stable process temperatures while improving heating efficiency in demanding production environments.

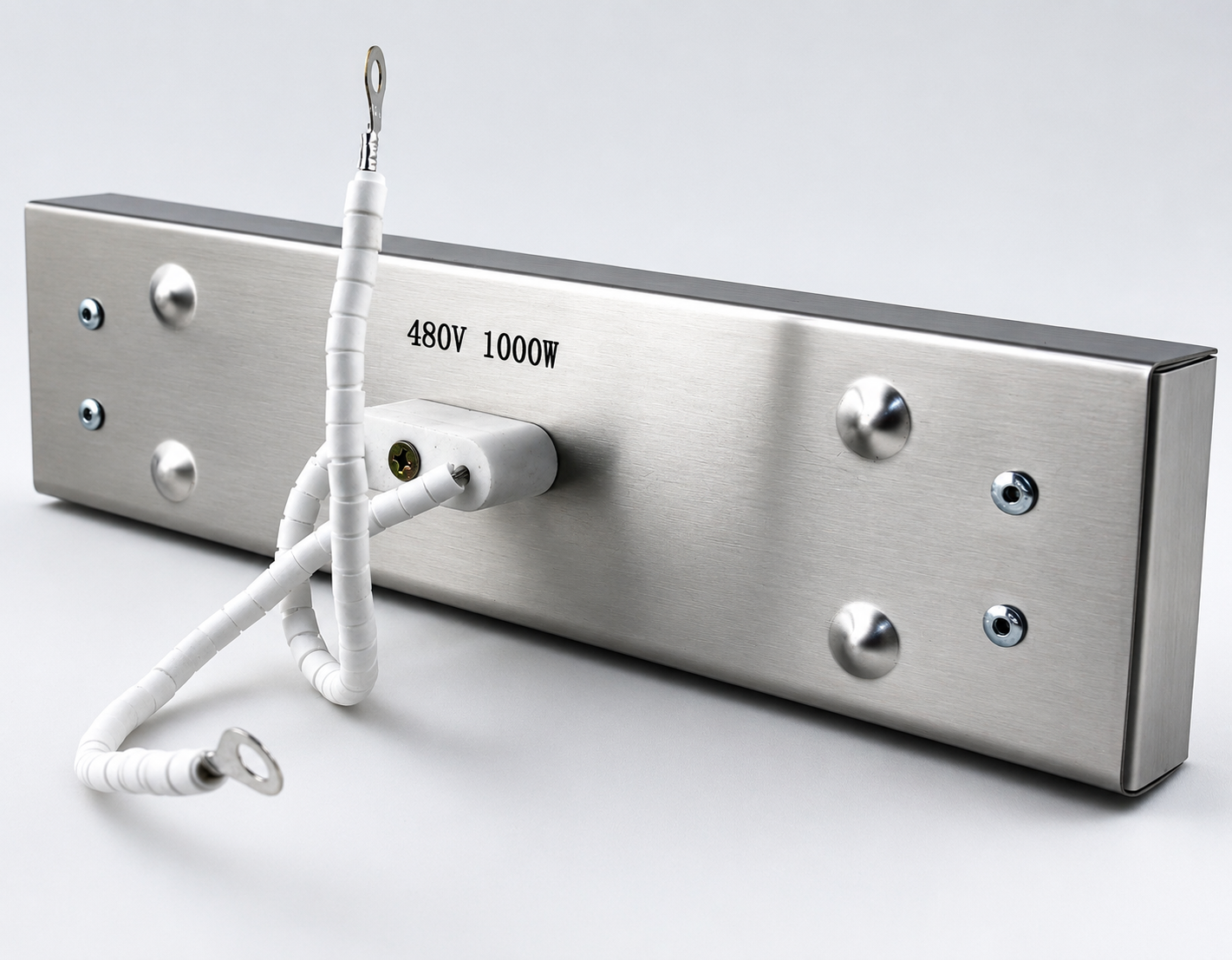

This configuration includes 7-inch ceramic bead lead wires with ring terminals exiting from a center ceramic clip hub. The ceramic bead insulation helps protect wiring in high-temperature environments, while the center lead exit design supports organized routing and simplified installation within industrial heating systems.

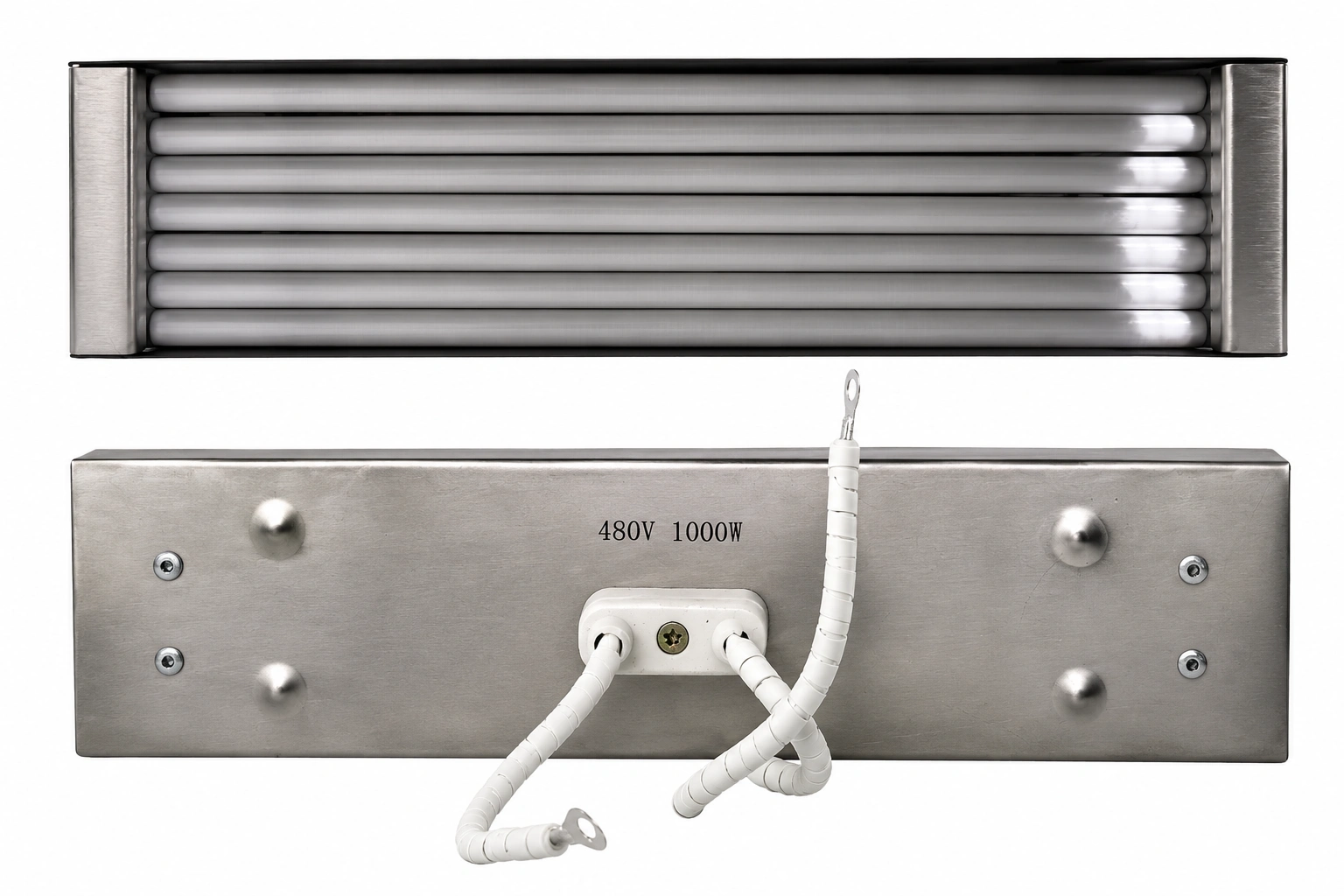

The stainless steel reflective cassette housing improves forward heat transfer and helps reduce radiant heat loss. Furthermore, this pillared full quartz infrared heating element works with transformers, thyristor controllers, and electronic power controllers for accurate process control and heat adjustment.

Designed for continuous industrial use, the heater supports up to 10,000 operating hours in demanding manufacturing environments.

Key Features of the Pillared Full Quartz Infrared Heating Element

• Medium-Wave Infrared Output
  Delivers efficient and uniform infrared heat transfer across the full emitter surface.
• Pillared Quartz Construction
  Supports structural stability and reliable long-term industrial operation.
• Fast Thermal Response
  Full quartz design allows rapid heat-up and cool-down performance.
• Ceramic Bead Lead Protection
  Protects electrical leads in high-temperature industrial environments.
• Reflective Stainless Steel Housing
  Improves forward heat output and helps reduce radiant heat loss.
• Flexible Process Control Compatibility
  Works with transformers, thyristor controllers, and electronic power controllers.
• Long Industrial Service Life
  Rated for up to 10,000 operating hours.

Pillared Full Quartz Infrared Heating Element Specifications

Ideal Applications for PFQE Heaters

• Thermoforming
• Shrink Packaging
• Adhesive Activation
• Plastics Processing
• Industrial Drying
• Coating & Paint Curing
• Textile & Paper Processing
• Rubber Processing
• Laminating Applications
• Automated Industrial Heating Systems

Technical Notes & Installation Guidelines

• Custom voltages, wattages, lead lengths, and termination styles are available upon request.
• Expected operating life can reach up to 10,000 hours depending on application conditions, operating temperatures, and installation environment.
• Recommended working distance from the heater surface is typically between 100 mm and 200 mm, depending on the process material and heating requirements.
• A minimum spacing of 5 mm between adjacent heating elements is recommended to support proper thermal distribution and system performance.
• Standard quartz infrared heating elements may be recommended in applications with excessive vibration or mechanical movement, as metal support designs can provide improved resistance to mechanical shock.
• To maintain long-term heater performance, the temperature of the stainless steel reflective housing should not exceed recommended operating limits.
• For proper operation and thermal consistency, quartz heating elements should be installed with the quartz tubes in a horizontal orientation.
• Always follow appropriate electrical, thermal, and safety guidelines during installation and operation.
