Advanced Quartz Infrared Emitters
Emitted Energy provides high-performance quartz infrared heating elements engineered for rapid thermal response and uniform heating across industrial applications like thermoforming, drying, and laminating.
Understanding Quartz Infrared Heating
Quartz infrared emitters are powerful, direct-radiant heating elements designed for rapid thermal response and high-efficiency energy transfer. Unlike convective air heating systems that slowly warm the surrounding air, infrared energy directly excites the molecular structure of the target material.
Whether utilizing medium-wave or short-wave profiles, full quartz construction allows these emitters to reach operating temperatures in seconds and cool down just as rapidly. This precise thermal control is critical in preventing material damage or scorching during unexpected line stoppages in automated environments.
Ideal for thermoforming plastics, curing coatings, activating adhesives, and drying applications across the paper and textile industries, our elements offer exceptional service lives—often exceeding 10,000 hours of continuous industrial use.
Precision Thermal Output
Emitted Energy’s emitters are engineered with features specifically designed to improve manufacturing efficiency and longevity in harsh environments.
- Pillared Quartz Construction
Pillared quartz tube designs ensure the heating filament remains structurally stable over time, preventing sagging and ensuring consistent thermal output over thousands of operating hours.
- High-Performance Filaments
Available with tungsten, carbon, carbon wound, and nickel-chromium filaments based on environmental needs, required wavelength, and desired response time.Â
- Reflective Coatings

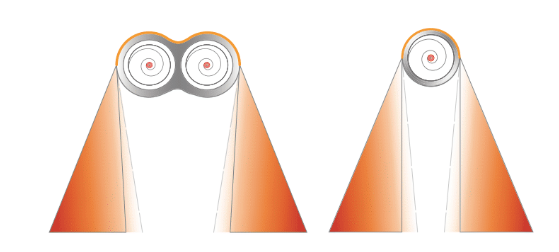

Integrated gold-coated, white, and ruby red ceramic reflective backing options help reduce heat loss to the rear of the unit and improve process efficiency.Â
- Custom Geometries
Multiple configurations, including tube, cassette, ring, and custom contours, are available to ensure uniform heat distribution.
Services & Integration
Buying a heater is only the beginning. Emitted Energy provides complete engineering services, from initial thermal modeling to building entire closed-loop control oven banks.
1. Thermal FEA Modeling
We utilize advanced Finite Element Analysis (FEA) to simulate how infrared energy will interact with your specific material, ensuring the right emitter specification before build.
2. Custom Heater Banks
3. Closed-Loop Control
4. Proof of Concept Labs
Category >
Quartz Infrared Emitters
High-efficiency, rapid-response heating elements designed for seamless integration into industrial processing ovens and banks. Whether you need standard modular cassettes or complex 3D profiles, our quartz emitters deliver precise, repeatable radiant heat.
Frequently Asked Questions
Under typical industrial operating conditions, our quartz infrared heating elements have an expected service life of up to 10,000 continuous hours. To maximize lifespan, ensure the stainless steel reflective housing does not exceed recommended ambient temperature limits.
For proper thermal consistency and to prevent the internal filament from sagging over time, standard quartz heating elements should always be installed with the quartz tubes in a horizontal orientation.
Yes. While standard configurations (like 1000W / 480V for PFQE) are stocked, our engineering team frequently designs elements with custom wattages, voltages, lead lengths, and termination styles to drop directly into proprietary machinery.
Quartz emitters boast a very rapid thermal response (heat-up and cool-down). To achieve tight process tolerances, they are best paired with thyristor controllers (SCRs) or electronic power controllers that can pulse the voltage accurately, rather than simple on/off contactors.
A minimum spacing of 5 mm between adjacent heating elements is recommended to support proper thermal distribution and prevent overheating of neighboring cassettes within a heater bank. The recommended working distance from the heater surface to the material is typically between 100 mm and 200 mm.
On this page
ON THIS PAGE
Infrared Heating Catalog
Get instant access to full specifications, dimensional drawings, and wattage charts for all IR emitters.
Get the Complete Infrared Heating Catalog
Access detailed specifications, comparison charts, and dimensional data for all Emitted Energy quartz heating elements. Fill out the form to download your free copy instantly.
- Compare wattage and voltage configurations.
- Review physical dimensions and termination styles.
- Learn best practices for installation and controller pairing.
