4-wire quartz infrared heating cassette full element with medium-wave IR output, quad lead configuration, and advanced thermal control integration for industrial heating applications.

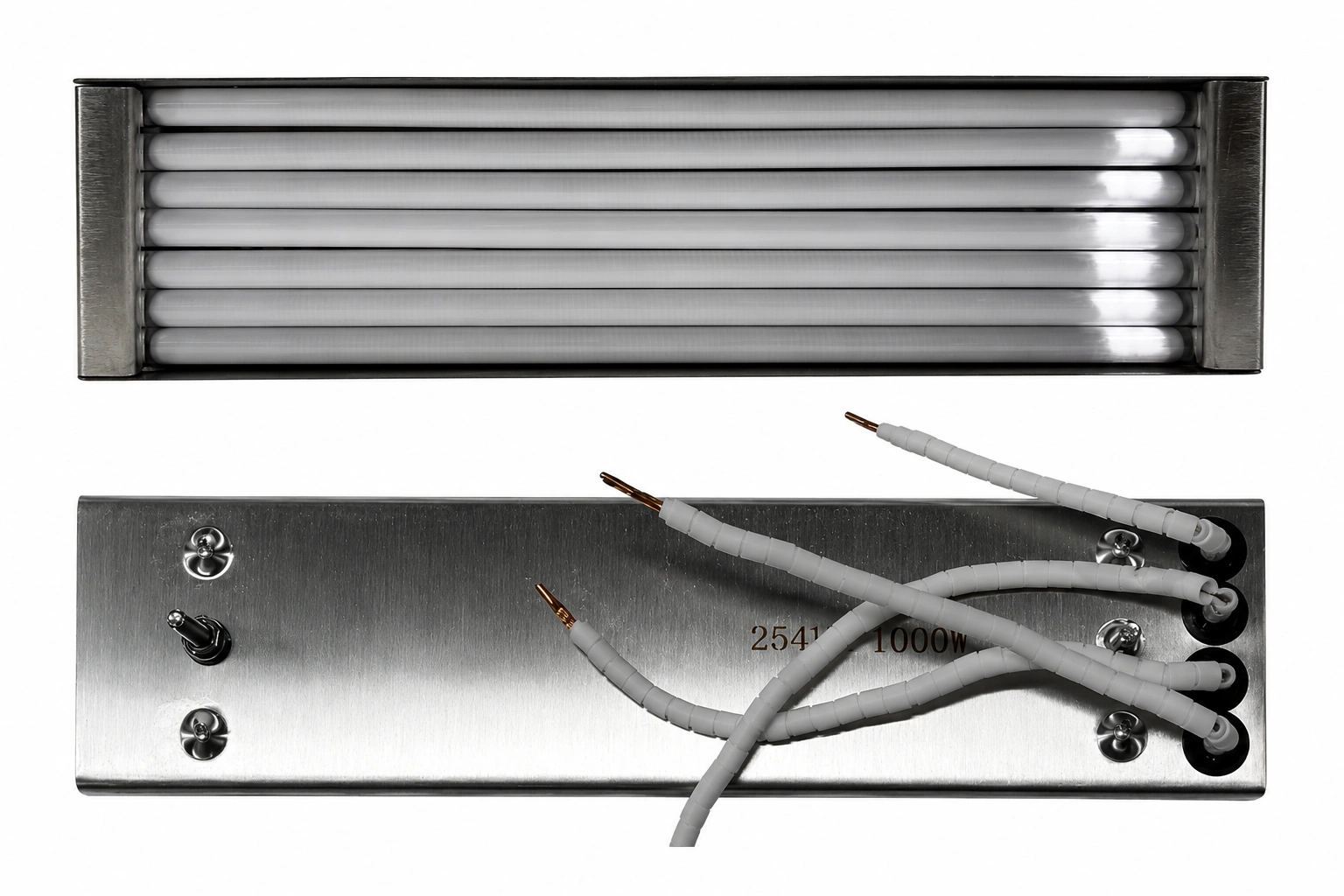

The Quartz Infrared Heating Element Cassette is a full modular medium-wave infrared heater designed for industrial heating and thermal processing applications. This 4-wire quartz infrared heating element cassette delivers uniform heat across the entire emitter surface for consistent and repeatable thermal performance in demanding production environments.
Rated at 1000W and 254V, this quartz infrared heating element supports applications such as thermoforming, shrink packaging, adhesive activation, plastics processing, laminating, coating drying, and industrial material heating. In addition, its medium-wave infrared output provides efficient heat transfer across plastics, coatings, textiles, paper, rubber, and composite materials.
The 150 mm quad straight lead configuration provides greater wiring flexibility and improved integration into advanced industrial heating systems. Furthermore, the 4-wire quartz infrared heating cartridge supports enhanced temperature monitoring, zone control, and integration into advanced closed-loop heating systems. Because of this, manufacturers can achieve more precise thermal management and improved process consistency across automated production lines.
The stainless steel cassette housing supports reliable long-term operation in demanding industrial environments. At the same time, the aluminum-plated reflective housing improves forward heat output and helps reduce radiant heat loss. This increases heating efficiency and supports stable process temperatures during continuous operation.
In addition, this quartz infrared heating cassette works with transformers, thyristor controllers, and electronic power controllers for accurate heat adjustment and process control. Designed for continuous industrial use, the heater supports up to 20,000 operating hours in demanding manufacturing applications.
| Feature | Details |
|---|---|
| Configuration | Full Quartz Infrared Heating Cartridge with Quad Leads |
| Power | 1000W |
| Voltage | 254V |
| Infrared Type | Medium-Wave Quartz Infrared |
| Dimensions | 9.72″ L × 2.46″ W × 0.89″ D |
| Lead Configuration | 150 mm quad straight leads |
| Mounting | Standard mounting configuration |
| Housing | Aluminum-plated reflective housing |
| Service Life | Up to 10,000 operating hours |
| Control Compatibility | Transformers, thyristor controllers, electronic power controllers |
