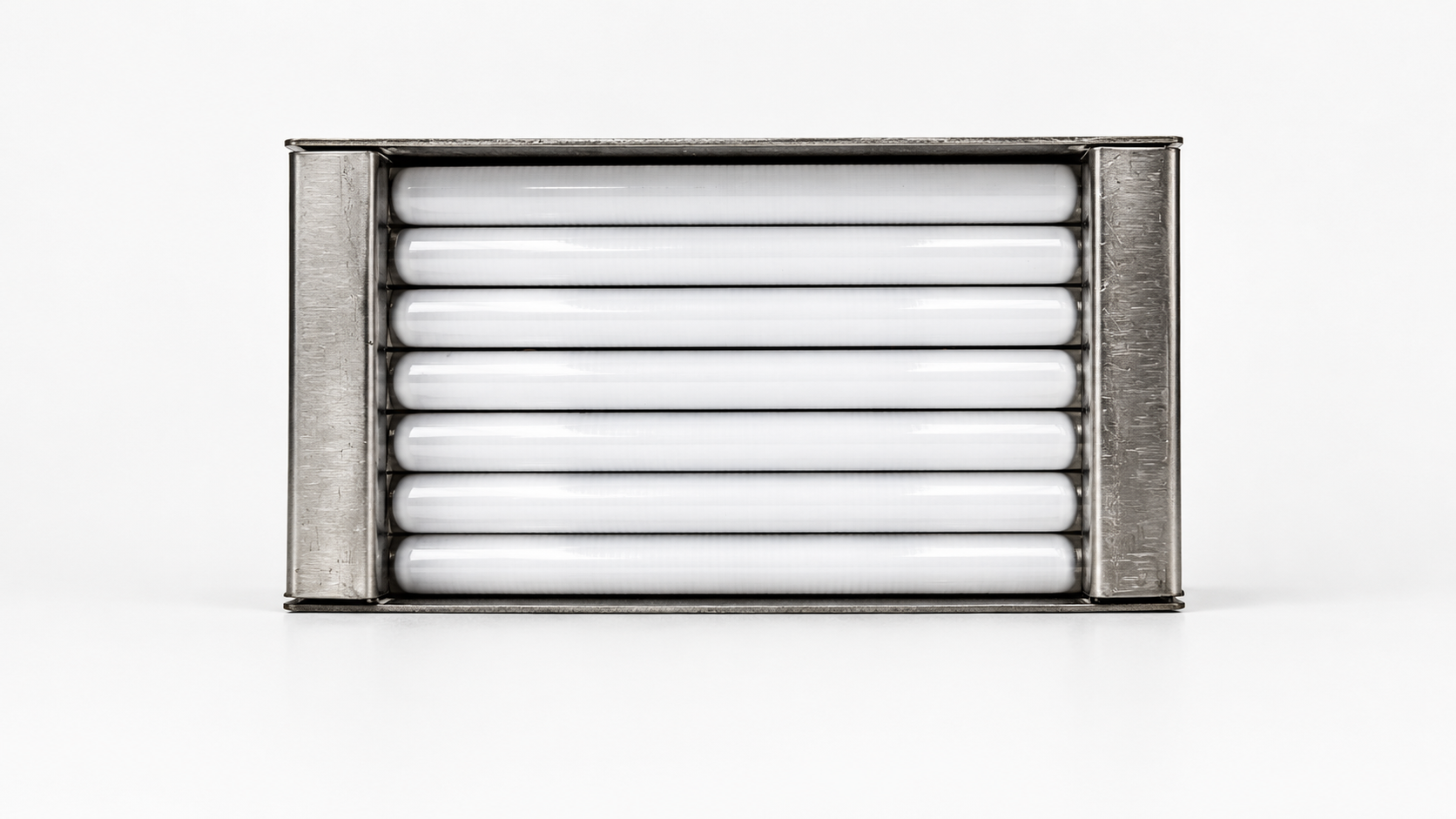

Compact quartz infrared heating element cartridge with a quad lead-wire configuration for advanced industrial heating control and medium-wave thermal processing applications.
The Quartz Infrared Heating Element Cassette with quad leads configuration is a compact medium-wave infrared heater designed for industrial heating and thermal processing applications that require enhanced control and wiring flexibility. This half-sized quartz infrared heating element delivers uniform heat distribution across the entire emitter surface for consistent and repeatable process performance.
Rated at 500W and 254V, the heater supports applications including thermoforming, adhesive activation, shrink packaging, plastics processing, coating drying, and industrial material heating. Its medium-wave infrared output provides efficient heat transfer for controlled thermal processing across a wide range of industrial materials.

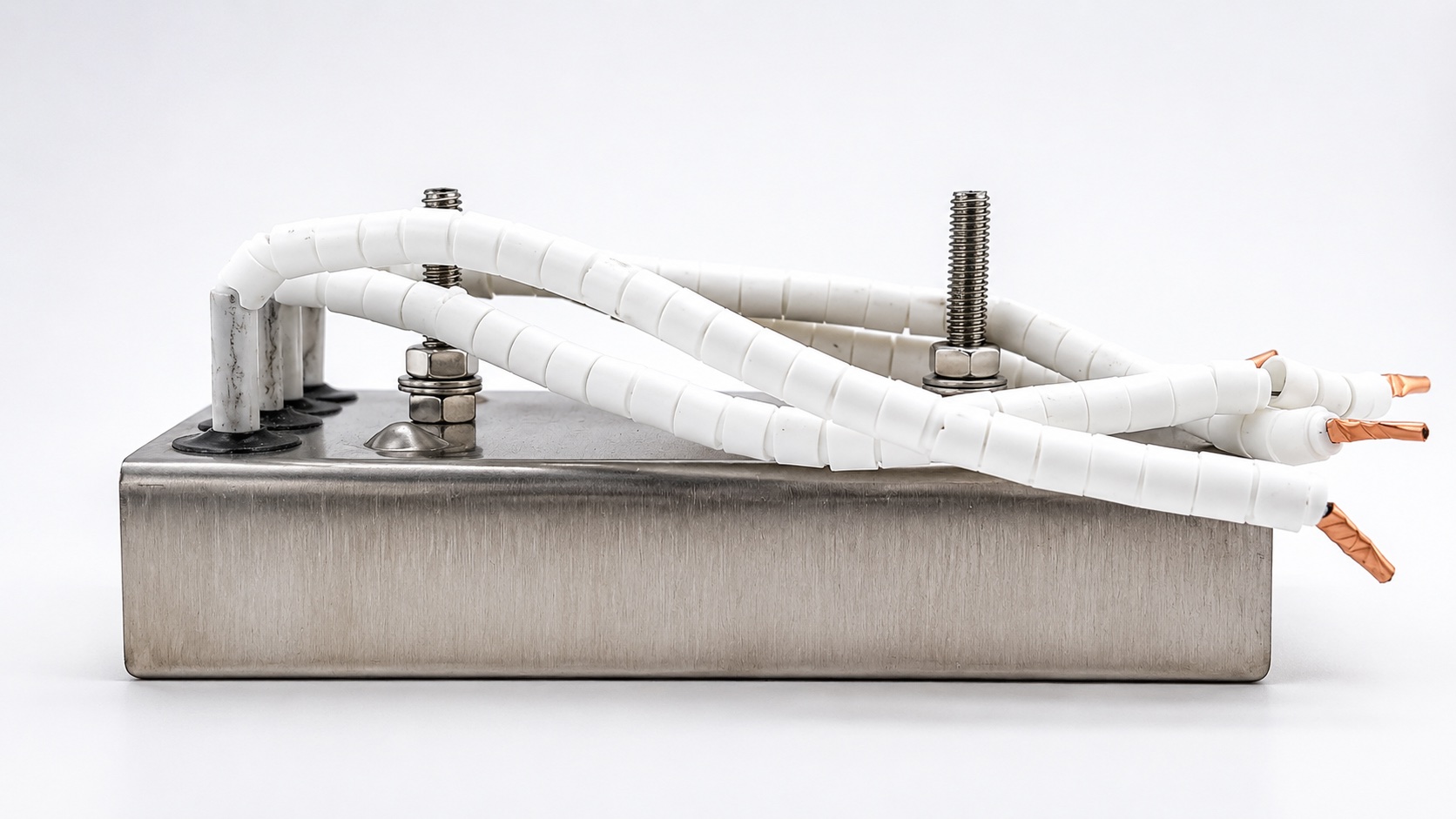

The 150 mm quad straight lead configuration allows greater integration flexibility for advanced heating systems. Quad lead designs are commonly used in applications that require improved temperature monitoring, zoning capability, phased wiring arrangements, or integration into the closed-loop control systems. This configuration can simplify wiring layouts while supporting more precise thermal management across automated production lines.

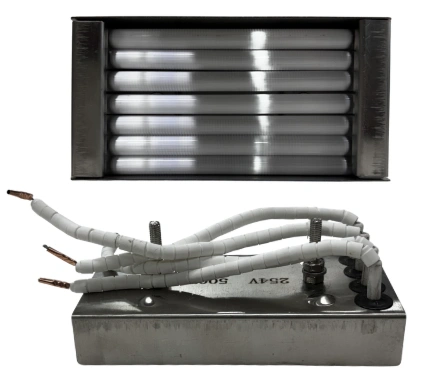

Its compact stainless steel cassette design allows easy installation in both new and existing systems. The aluminum-plated reflective housing improves forward heat output and helps reduce radiant energy loss for an improved energy efficiency.
Designed for demanding industrial environments, this quartz infrared heating element supports up to 10,000 operating hours and works with transformers, thyristor controllers, and electronic power controllers for accurate heat adjustment and process control.
| Feature | Details |
|---|---|
| Configuration | Quartz Infrared Heating Cartridge with Quad-Lead Wires-Half Size |
| Power | 500W |
| Voltage | 254V |
| Infrared Type | Medium-Wave Quartz Infrared |
| Dimensions | 4.86″ L × 2.48″ W × 0.89″ D |
| Lead Configuration | 150 mm quad straight leads |
| Mounting | Standard 2-bolt mounting pattern |
| Housing | Aluminum-plated reflective housing |
| Service Life | Up to 10,000 operating hours |
| Control Compatibility | Transformers, thyristor controllers, electronic power controllers |
