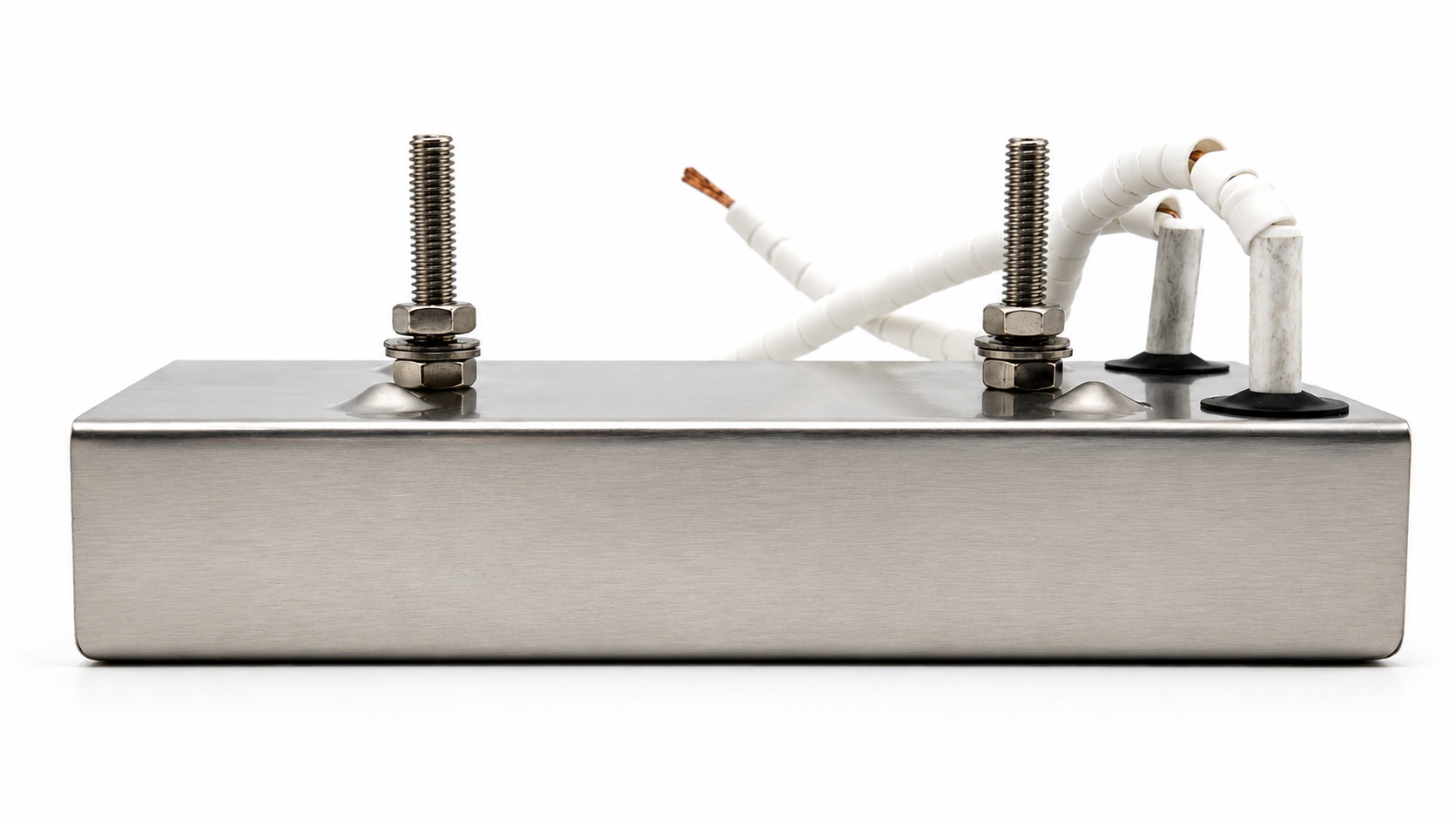

Compact dual lead wire quartz infrared heating cartridge with medium-wave IR output for industrial heating, drying, and thermal processing applications.
The Quartz Infrared Heating Cassette with dual lead configuration is a compact medium-wave infrared heater designed for industrial heating and thermal processing applications that require enhanced control and wiring flexibility. This quartz infrared heating cassette delivers uniform heat distribution across the entire emitter surface for consistent and repeatable process performance.
Rated at 500W and 254V, the quartz infrared heating cassette supports applications including thermoforming, adhesive activation, shrink packaging, plastics processing, coating drying, and industrial material heating. In addition, its medium-wave infrared output provides efficient heat transfer across plastics, coatings, textiles, paper, rubber, and other industrial materials.
The 150 mm quad straight lead configuration provides greater integration flexibility for advanced heating systems. Furthermore, quad lead designs support improved temperature monitoring, zoning capability, phased wiring arrangements, and integration into closed-loop control systems. Because of this, manufacturers can achieve more precise thermal management across automated production lines.
Its compact stainless steel cassette design allows easy installation in both new and existing systems. At the same time, the reflective housing improves forward heat output and helps reduce radiant heat loss for improved heating efficiency.
Designed for demanding industrial environments, this quartz infrared heating cassette supports up to 10,000 operating hours. In addition, it works with transformers, thyristor controllers, and electronic power controllers for accurate heat adjustment and reliable process control.
| Feature | Details |
|---|---|
| Configuration | Quartz Infrared Heating Cassette – Half Size |
| Power | 500W |
| Voltage | 254V |
| Infrared Type | Medium-Wave Quartz Infrared |
| Dimensions | 4.86″ L × 2.48″ W × 0.89″ D |
| Lead Configuration | 150 mm dual straight leads |
| Mounting | Standard 2-bolt mounting pattern |
| Housing | Aluminum-plated reflective housing |
| Service Life | Up to 10,000 operating hours |
| Control Compatibility | Transformers, thyristor controllers, electronic power controllers |
