Teledyne FLIR A615
The Teledyne FLIR A615 targets automation applications and is a perfect instrument for industries which rely on permanent monitoring of objects that are fast moving or when the temperature changes over time is quiet fast.

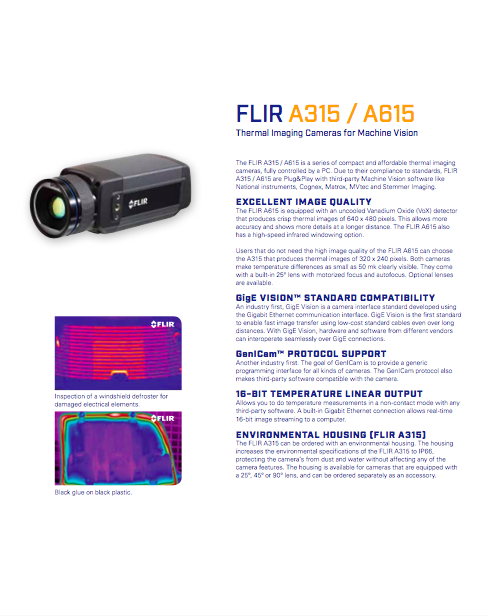

FLIR A615 Features
Excellent Image Quality
The FLIR A615 is equipped with an uncooled Vanadium Oxide (VoX) detector that produces crisp thermal images of 640 x 480 pixels. This allows more accuracy and shows more details at a longer distance. The FLIR A615 also has a high-speed infrared windowing option. The FLIR A615 can make temperature differences as small as 50 mk clearly visible. It also features a built-in 25° lens with motorized focus and autofocus. Optional lenses are available.
GigE Vision™ Standard Compatibility
An industry first, GigE Vision is a camera interface standard developed using the Gigabit Ethernet communication interface. GigE Vision is the first standard to enable fast image transfer using low-cost standard cables even over long distances. With GigE Vision, hardware and software from different vendors can interoperate seamlessly over GigE connections.
GenICam™ Protocol Support
Another industry first. The goal of GenICam is to provide a generic programming interface for all kinds of cameras. The GenICam protocol also makes third-party software compatible with the camera.
16-bit Temperature Linear Output
Allows you to do temperature measurements in a non-contact mode with any third-party software. A built-in Gigabit Ethernet connection allows real-time 16-bit image streaming to a computer.
Teledyne FLIR A615 Technical Specifications
| Field of view (FOV) / Minimum focus distance | 15°: 15° × 11° (19° diagonal) / 0.50 m (1.64 ft.) 25°: 25° × 19° (31° diagonal) / 0.25 m (0.82 ft.) 45°: 45° × 34° (55° diagonal) / 0.15 m (0.49 ft.) 7°: 7° × 5.3° (8.7° diagonally) / 2.0 m (6.6 ft.) 80°: 80° × 64.4° (92.8° diagonal) / 65 mm (2.6 in.) |
| Spatial resolution (IFOV) | 15°: 0.41 mrad 25°: 0.68 mrad 45°: 1.23 mrad 7°: 0.19 mrad 80°: 2.62 mrad |
| Focal length | 15°: 41.3 mm (1.63 in.) 25°: 24.6 mm (0.97 in.) 45°: 13.1 mm (0.52 in.) 7°: 88.9 mm (3.5 in.) 80°: 6.5 mm (0.26 in.) |
| F-number | 1.0 |
| Image frequency | 50 Hz (100/200 Hz with windowing) |
| Focal Plane Array (FPA) / Spectral range | Uncooled microbolometer / 7.5–14 μm |
| IR resolution | 640 × 480 pixels |
| Detector pitch | 17 μm |
| Detector time constant | Typical 8 ms |
| Object temperature range | -20 to +150°C +100 to +650°C +300 to +2000°C |
| USB | Control and image |
| USB, standard | USB 2 HS |
| USB, connector type | USB Mini-B |
| USB, communication | TCP/IP socket-based FLIR proprietary |
| USB, image streaming | 16-bit 640 × 480pixels at 25 Hz- Signal linear- Temperature linear- Radiometric |
| USB, protocols | TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Ethernet, image streaming | 16-bit 640 × 480pixels at 50 Hz16-bit 640 × 240pixels at 100 Hz16-bit 640 × 120pixels at 200 Hz- Signal linear- Temperature linear- RadiometricGigE Vision and GenICam compatible |
General
| Imaging & Optical Data | |
| Lens identification | Automatic |
| Thermal sensitivity/NETD | < 0.05°C @ +30°C (86°F) / 50 mK |
| Focus | Automatic or manual (built in motor) |
| Measurement | |
| Accuracy | ±2°C or ±2% of reading |
| Measurement analysis | |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics transmission correction | Automatic, based on signals from internal sensors |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections | Global object parameters |
| Ethernet | |
| Ethernet | Control and image |
| Ethernet, standard | IEEE 802.3 |
| Ethernet, connector type | RJ-45 |
| Ethernet, type | Gigabit Ethernet |
| Ethernet, communication | TCP/IP socket-based FLIR proprietary and GenICam protocol |
| Ethernet, protocols | TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Digital input/output | |
| Digital input | 2 opto-isolated, 10–30 VDC |
| Digital output, purpose | Output to ext. device (programmatically set) |
| Digital output | 2 opto-isolated, 10–30 VDC, max 100 mA |
| Digital I/O, isolation voltage | 500 VRMS |
| Digital I/O, supply voltage | 12/24 VDC, max 200 mA |
| Digital I/O, connector type | 6-pole jackable screw terminal |
| Digital input, purpose | Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read) |
| Power system | |
| External power operation | 12/24 VDC, 24 W absolute max |
| External power, connector type | 2-pole jackable screw terminal |
| Voltage | Allowed range 10–30 VDC |
| Environmental data | |
| Storage temperature range | –40°C to +70°C (-40 to 158°F) |
| Humidity (operating and storage) | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (77 to 104°F) |
| EMC | • EN 61000-6-2:2001 (Immunity) • EN 61000-6-3:2001 (Emission) • FCC 47 CFR Part 15 Class B (Emission) |
| Vibration | 2 g (IEC 60068-2-6) |
| Physical data | |
| Housing material | Aluminium |
| Scope of delivery | |
| Hard transport case or cardboard box, Thermal imaging camera with lens, Utility CD-ROM, Calibration certificate, Ethernet™ cable, USB cable (FLIR A615), Mains cable, Power cable (pig-tailed), Power supply, Printed Getting Started Guide, Printed Important Information Guide, User documentation CD-ROM, Warranty extension card or Registration card, 6-pole screw terminal (mounted on camera) | |
