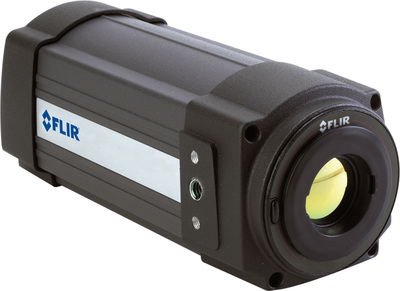

Teledyne FLIR A310

The FLIR A310 infrared cameras target safety and automation applications where networking capabilities and compliance with networking protocols is of essence. With Ethernet/IP and Modbus TCP compliance, these cameras easily connect with PLCs for sharing of analysis and alarm results. They are also an ideal solution for any industry where fire prevention, critical vessel monitoring or fixed-mounted predictive maintenance are important.

Technical Specifications

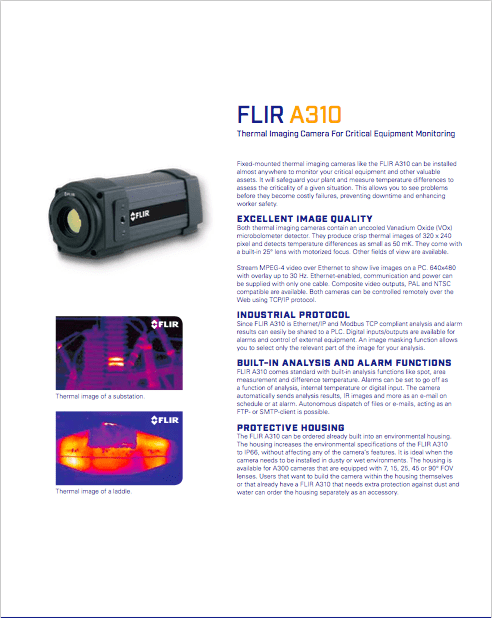

Product Literature
FOV Calculator

Teledyne FLIR A310 Features

​Excellent Image Quality

​Both thermal imaging cameras contain an uncooled Vanadium Oxide (VOx) microbolometer detector. They produce crisp thermal images of 320 x 240 pixel and detects temperature differences as small as 50 mK. They come with a built-in 25° lens with motorized focus. Other fields of view are available.
Stream MPEG-4 video over Ethernet to show live images on a PC. 640×480 with overlay up to 30 Hz. Ethernet-enabled, communication and power can be supplied with only one cable. Composite video outputs, PAL and NTSC compatible are available. Both cameras can be controlled remotely over the Web using TCP/IP protocol.

​Industrial Protocol

Since Teledyne FLIR A310 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.

​Built-in Analysis and Alarm Functions

Teledyne ​FLIR A310 comes standard with built-in analysis functions like spot, area measurement and difference temperature. Alarms can be set to go off as a function of analysis, internal temperature or digital input. The camera automatically sends analysis results, IR images and more as an e-mail on schedule or at alarm. Autonomous dispatch of files or e-mails, acting as an FTP- or SMTP-client is possible.

​Protective Housing

The Teledyne FLIR A310 can be ordered already built into an environmental housing. The housing increases the environmental specifications of the Teledyne FLIR A310 to IP66, without affecting any of the camera’s features. It is ideal when the camera needs to be installed in dusty or wet environments. The housing is available for A300 cameras that are equipped with 7, 15, 25, 45 or 90° FOV lenses. Users that want to build the camera within the housing themselves or that already have a Teledyne ​FLIR A310 that needs extra protection against dust and water can order the housing separately as an accessory.

​FLIR A310 Technical Specifications

System OverviewFLIR A310
Area10 boxes with max./min./average/position
Isotherm1 with above/below/interval
Measurement optionMeasurement Mask Filter Schedule response: File sending (ftp), email (SMTP)
Difference temperatureDelta temperature between measurement functions or reference temperature
Reference temperatureManually set or captured from any measurement function
Atmospheric transmission correctionAutomatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correctionAutomatic, based on signals from internal sensors
Emissivity correctionVariable from 0.01 to 1.0
Reflected apparent temperature correctionAutomatic, based on input of reflected temperature
External optics/windows correctionAutomatic, based on input of optics/window transmission and temperature
Measurement correctionsGlobal and individual object parameters
Field of view (FOV) / Minimum focus distance25° × 18.8° / 0.4 m (1.31 ft.)
Lens identificationAutomatic
Thermal sensitivity/NETD< 0.05°C at +30°C (86°F) (86°F) / 50 mK
FocusAutomatic or manual (built in motor)
Image frequency30 Hz
Zoom1–8× continuous, digital, interpolating zooming on images
Alarm functions6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
Alarm outputDigital Out, log, store image, file sending (ftp), email (SMTP), notification
Detector data
IR resolution320 × 240 pixels
Detector pitch25 μm
Detector time constantTypical 12 ms
Focal Plane Array (FPA) / Spectral rangeUncooled microbolometer / 7.5–13 μm
Object temperature range–20 to +120°C (-4 to 248°F) 0 to +350°C (32 to 662°F)
Accuracy±2°C (3.6°F) or ±2% of reading
Color palettesColor palettes (BW, BW inv, Iron, Rain)
Set-up commandsDate/time, Temperature °C /°F
Storage media
Image storage typeBuilt-in memory for image storage
File formatsStandard JPEG, 16-bit measurement data included
Composite video
Video outComposite video output, PAL and NTSC compatible
Video, standardCVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC)
Digital input/output
Digital input2 opto-isolated, 10–30 VDC
Digital output, purposeAs function of ALARM, Output to ext. device (programmatically set)
Digital output2 opto-isolated, 10–30 VDC, max 100 mA
Digital I/O, isolation voltage500 VRMS
Digital I/O, supply voltage12/24 VDC, max 200 mA
Digital I/O, connector type6-pole jackable screw terminal
Digital input, purposeImage tag (start/stop/general), Input ext. device (programmatically read)
Ethernet, standardIEEE 802.3
Ethernet, connector typeRJ-45
Ethernet, type100 Mbps
Ethernet, communicationTCP/IP socket-based FLIR proprietary
Ethernet, powerPower over Ethernet, PoE IEEE 802.3af class 0
EthernetControl, result and image
Ethernet, protocolsEthernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP
Ethernet, image streaming16-bit 320 x 240 pixels at 7-8 Hz -Radiometric
Environmental data
Storage temperature range–40°C to +70°C (-40° to 158°F)
Humidity (operating and storage)IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (77 to 104°F)
EMC• EN 61000-6-2:2001 (Immunity) • EN 61000-6-3:2001 (Emission) • FCC 47 CFR Part 15 Class B (Emission)
Vibration2 g (IEC 60068-2-6)
Physical data
Housing materialAluminium
Scope of delivery
Cardboard box, Infrared camera with lens, Ethernet cable, FLIR Tools download card, Mains cable, Power cable - pig-tailed, Power supply, Printed documentation, User documentation CD-ROM, Utility CD-ROM

The FLIR A310 comes standard with a 25º Lens built-in. There are available optional lenses that may be purchased with the camera. Select from the dropdown to explore field of views with varying lenses.
