Teledyne FLIR AX8

Combining thermal and visual cameras in a small, affordable package, the AX8 provides continuous temperature monitoring and alarming for uninterrupted condition monitoring of critical electrical and mechanical equipment. The AX8 provides early detection of temperature-related issues in electrical and mechanical equipment, making it the ideal temperature sensor for continuous condition monitoring and hot spot detection for electrical cabinets, process and manufacturing settings, data centers, mass transit facilities, energy generation plants, and storage facilities.

Technical Specifications

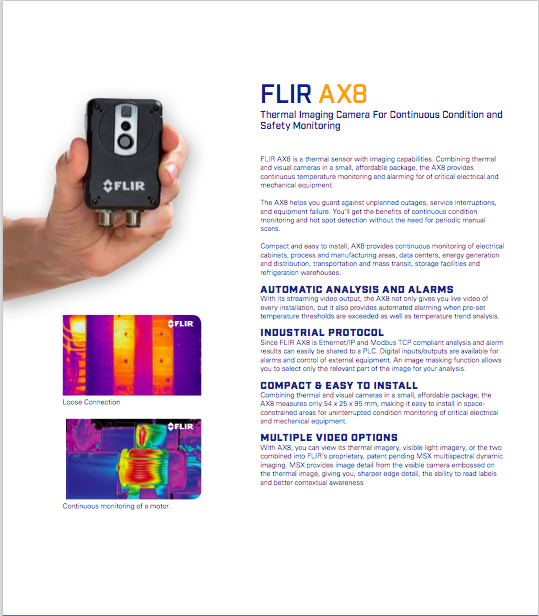

Product Literature
FOV Calculator

Teledyne FLIR AX8 Features

​Automatic Analysis and Alarms

With its streaming video output, the AX8 not only gives you live video of every installation, but it also provides automated alarming when pre-set temperature thresholds are exceeded as well as temperature trend analysis.

​Industrial Protocol

Since Teledyne ​FLIR AX8 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.

​Compact and Easy to Install

Combining thermal and visual cameras in a small, affordable package, the AX8 measures only 54 x 25 x 95 mm, making it easy to install in space-constrained areas for uninterrupted condition monitoring of critical electrical and mechanical equipment.

​Multiple Video Options

With AX8, you can view its thermal imagery, visible light imagery, or the two combined into FLIR’s proprietary, patent pending MSX multispectral dynamic imaging. MSX provides image detail from the visible camera embossed on the thermal image, giving you, sharper edge detail, the ability to read labels and better contextual awareness.

Teledyne FLIR AX8 Technical Specifications

Imaging & Optical Data
IR resolution80 × 60 pixels
Thermal sensitivity/NETD< 0.10°C @ +30°C (+86°F) / 100 mK
Field of view (FOV)48° × 37°
Detector data
Detector typeFocal Plane Array (FPA), uncooled microbolometer
Spectral range7.5–13 μm
Visual camera
Built-in digital camera640 × 480
Digital camera, FOVAdapts to the IR lens
SensitivityMinimum 10 Lux without illuminator
Object temperature range–10°C to +150°C (14°F to 302°F)
Accuracy±2°C (±3.6°F) or ±2% of reading (+10 to +100C@+10 to +35 amb)
Measurement analysis
Area6 boxes with max./min./average
Automatic hot/cold detectionMax/Min temp. value and position shown within box
Measurement presetsYes
Atmospheric transmission correctionAutomatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correctionAutomatic, based on signals from internal sensors
Emissivity correctionVariable from 0.01 to 1.0
Reflected apparent temperature correctionAutomatic, based on input of reflected temperature
External optics/windows correctionAutomatic, based on input of optics/window transmission and temperature
Measurement correctionsGlobal object parameters
Alarm functionsAutomatic alarms on any selected measurement function. A maximum of 5 alarms can be set
Alarm outputDigital Out, store image, file sending (ftp), email (SMTP), notification
Color palettesColor palettes (BW, BW inv, Iron, Rain)
Set-up commandsDate/time, Temperature °C/°F
Web interfaceYes
Storage of images
Storage mediaBuilt-in memory for image storage
Image storage modeIR, visual, MSX
File formatsJPEG+FFF
EthernetControl, result and image
Ethernet, type100 Mbps
Ethernet, standardIEEE 802.3
Ethernet, connector typeM12 8-pin X-coded
Ethernet, video streamingYes
Ethernet, powerPower over Ethernet, PoE IEEE 802.3af class 0.
Ethernet, protocolsEthernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
Image streaming
Image streaming formatsMotion JPEG, MPEG, H.264
Image streaming resolution640 × 480
Image modesThermal, Visual, MSX (IR-image with enhanced detail presentation)
Automatic image adjustmentContinuous
Power system
External power operation12/24VDC, 2 W continuously/ 3.1 W absolute max
External power, connectorM12 8-pin A-coded (Shared with digital I/O)
Voltage Allowed range10.8–30VDC
Environmental data
Operating temp. range0°C to +50°C (32°F to +122°F)
Storage temp. range–40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2
Humidity (operating and storage)IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles
EMCEN 61000-6-2:2001 (Immunity)EN 61000-6-3:2001 (Emission)FCC 47 CFR Part 15 Class B (Emission)
EncapsulationIP67 (IEC 60529)
Bump25 g (IEC 60068-2-29)
Vibration2 g (IEC 60068-2-6)
Physical data

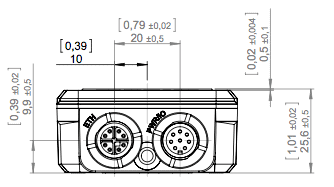

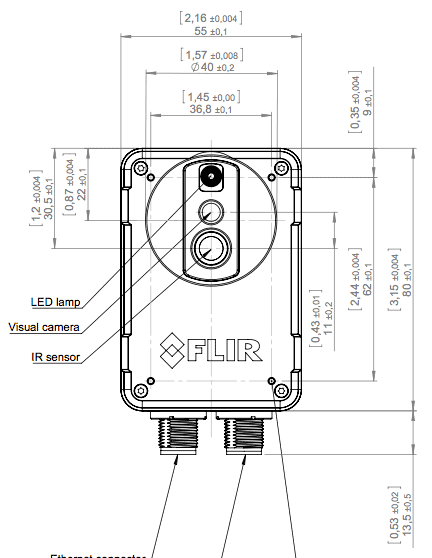

Camera size (L × W × H)54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors 54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors
Shipping information
PackagingInfrared camera with lens, printed documentation, user documentation CD-ROM
